Technical Specifications

3″ LED Downlight, Low Glare UGR10,Ra98 Full Spectrum

E02 Series 3″ 7/10/15W 15/24/36/45/60deg UGR10

Quick Specs

Power: 7W,10W,15W
Voltage: 220-240Vac
Operating Temp. Range: -20°C to 60°C
Color Temperature: 2700K, 3000K, 4000K, 5000K
Dimming: optional
Power Factor: ≥ 0.5
CRI: Ra90/Ra98
Drivers: Brand(Philips,Lifud)
Dimension: D85*H85mm,D65*H85mm
Cutout: D75mm,D55mm
Rated Life: 50,000 hours
Warranty:5 years

Get A Quote

- 216pcs epistar smd4014 light source,Ra80.
- GREENSO,LIFUD,ZY or OEM brand Power brand driver.
- High purity Aluminum materials + Local Brand PS LGP
- White housing,paint baking surface,never fade and anti-scratch.
- Triac,0/1-10V,DALI dimmable options are all available.
- Easy suspended and recessed installation options
- Lifespan: 35,000 hrs.
- Limited Warranty: 3 years (5yrs and 7yrs optional).



SPECIFICATION

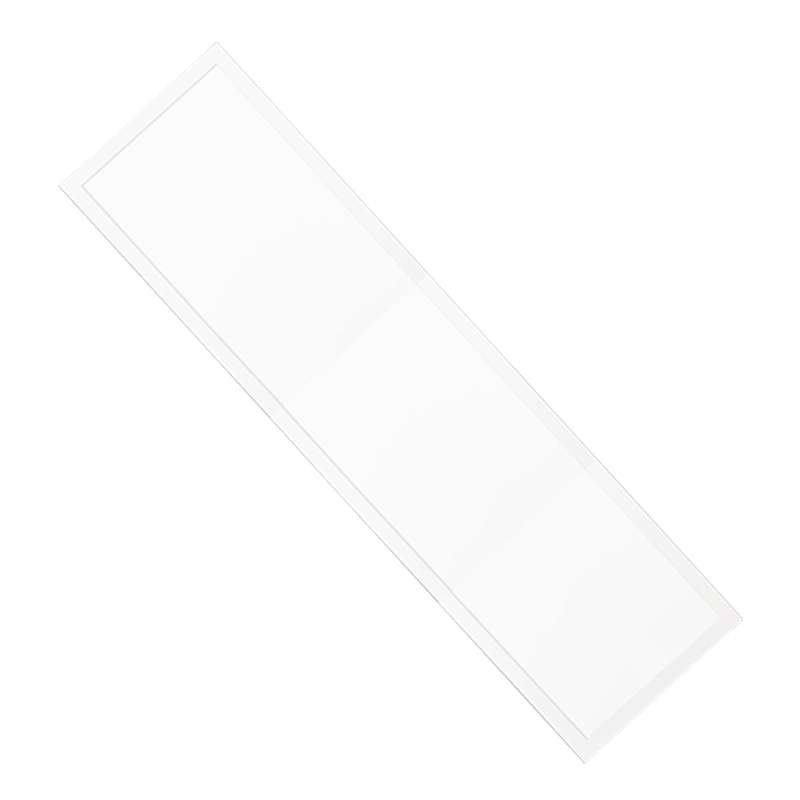

Model NoERDL-40W-P06
Dimension1195*395*9mm
LED Light Source/QTY216pcs epistar smd4014 light source
Power40W
Color Temp2700K-7000K
Luminous (lm)4000-4400LM
Lighting Effect>100-110LM/W
CRI80/90Ra
P.F.>0.95
Power Efficiency>89％
Input VoltageAC85-265V, 50/60Hz
Beam angle50°
Work Temp-20~60℃
Working Humidity10％-90％
IP RateIP40
Main MaterialNew private module housing design,better heat dissipation with small height
Frame colorWhite housing,polished high brightness reflector,PMMA LENS
LifespanMore than 35,000hrs
Warranty3 or 5 Years
CertificationCE ROHS SAA FCC TUV ETL

DIMENSION：                                                      MOUNTING：





DIMMING：                                                      CONTROL：
